Description

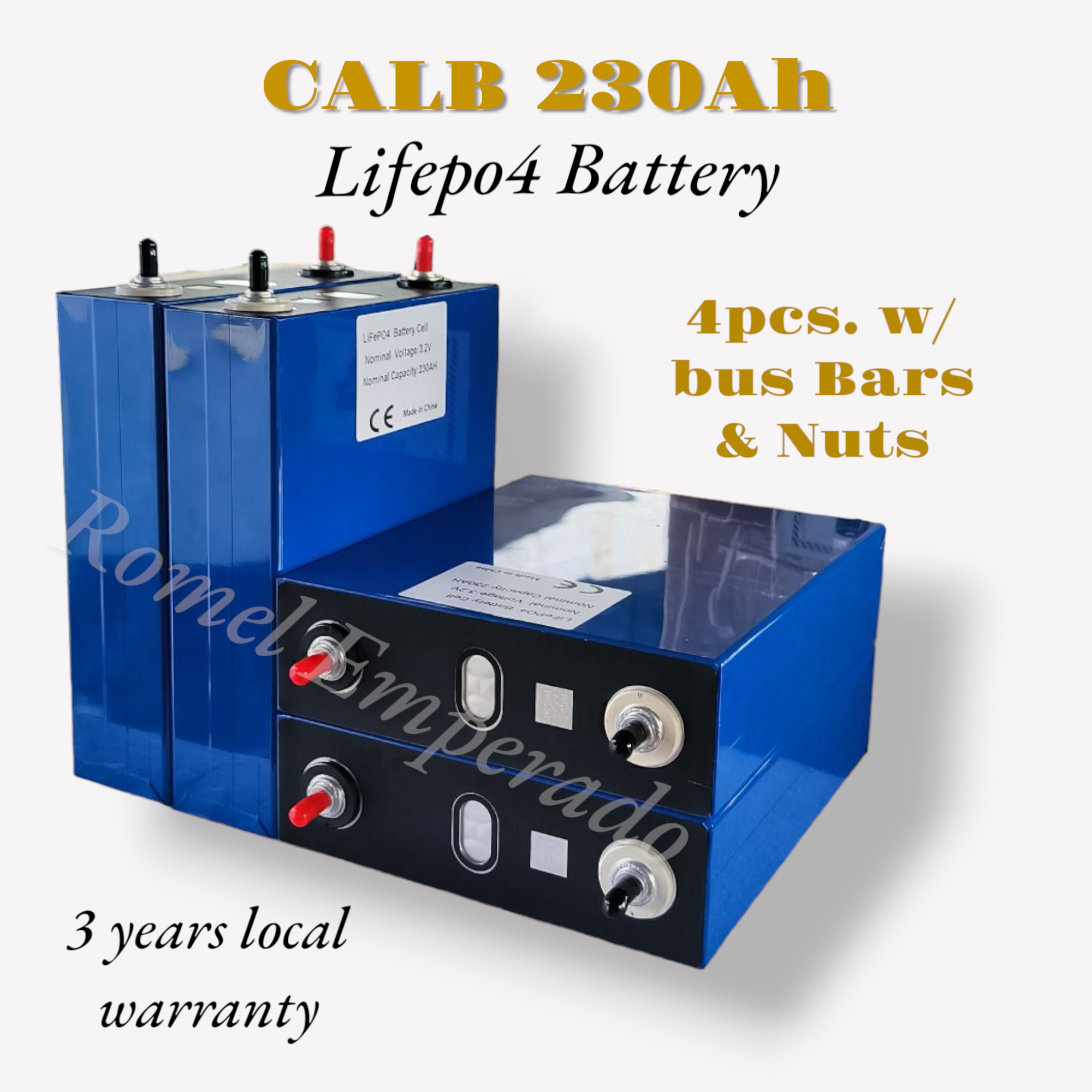

Model: CALB L173F230
Chemistry: Lithium Iron Phosphate (LiFePO₄)
Rated Capacity: 230 Ah
Minimum Capacity: 230 Ah
Rated Voltage: 3.2 V
Rated Energy: 736 Wh
Operating Voltage Range: 2.5 – 3.65 V
Max Continuous Discharge: 1C (230 A)
Standard Charge Current: 1C (230 A)
Fast Charge (Reference): ~1 hour
Internal Resistance (AC): ≤ 0.3 mΩ @ 30% SOC, 1 kHz
Operating Temperature:
• Charging: 0°C to 55°C
• Discharging: -36°C to 65°C
• Storage: -20°C to 25°C (standard)
Cycle Life:
• ≥ 4000 cycles
• Test condition: 1C charge / 1C discharge
• End-of-life: 80% remaining capacity
Dimensions (mm):
• Length: 173.93 ± 0.15
• Width: 53.72 ± 0.15
• Height (with terminals): 207.2 ± 0.3
• Height (without terminals): 204.63 ± 0.4
Weight: 4.17 ± 0.16 kg
Shell Material: Aluminum
Safety Features:
• Integrated safety vent
• Aluminum prismatic casing
